USER STORY

Facade Elevation of a Listed Industrial Building: Precise 3D Survey for Renovation Planning

Text: User Story. Facade Elevation of Listed Industrial Building

Contents

Requirements: Documentation of facade
Challenges of Capturing a Listed Facade
Survey Execution: 25 Scan Positions and Efficient Data Capture
From Point Cloud to Digital Plans Using PointCab Origins and Geograf
Why Detailed Facade Documentation Matters for Preservation Projects

Requirements: Facade Documentation of Listed Building

Facade of heritage building in Magdeburg

In Magdeburg, a historic industrial building subject to preservation orders was undergoing conversion into residential loft apartments. To comply with heritage requirements and support renovation planning, highly accurate, true-to-scale documentation of the building’s facades was essential. Traditional measurement approaches were not feasible due to the narrow working space and the structure’s height, so a 3D laser scanning survey was commissioned. The 3D laser scanning survey, as well as the processing and modeling of the point cloud data was carried out by Laserscanning Europe.

Challenges of Capturing a Listed Facade

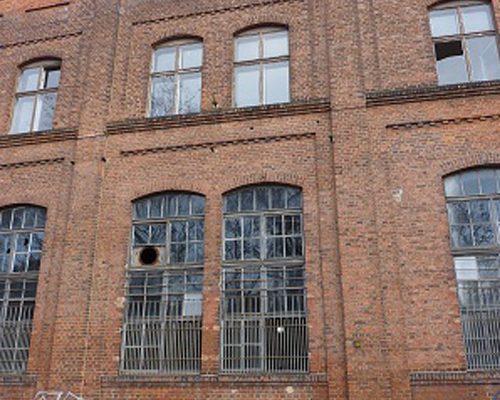

Fassade-Industriegebäude-Magdeburg

The building’s complex geometry presented multiple challenges:

  • The facades reach up to 17 m in height, making direct manual measurement risky and limited by space.
  • The east facade features multiple offsets and sloping sections, requiring detailed mapping to capture elements such as window surrounds and wall protrusions.
  • As a listed structure, all renovations must align with heritage preservation requirements, which demand accurate documentation of existing conditions before design can proceed.

These conditions made non-contact 3D laser scanning the only practical method to achieve comprehensive and precise data.

Survey Execution: 25 Scan Positions and Efficient Data Capture

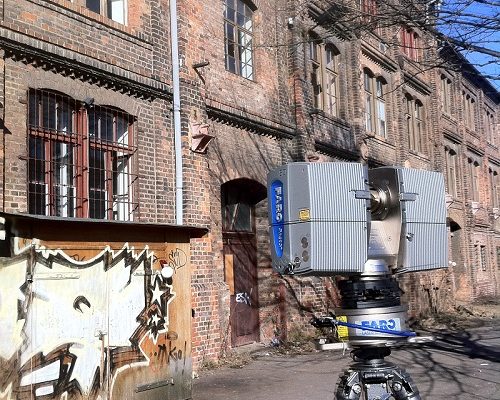

Faro-Laserscanner-vor-Fassade-Industriegebäude-Magdeburg

The team performed a total of 25 laser scanner setups across the three principal facades, covering a facade area of 1,720 m². Only one surveyor was needed on site, and the total scanning time was approximately 5 hours.

The result was a dense and complete point cloud representing all facade details – including irregularities and features that are critical for both preservation and renovation planning.

The rapid creation of scaled orthophotos allowed for quick analysis in Geograf.
Eric Bergholz
CEO, Laserscanning Europe GmbH
Dez. 2018

From Point Cloud to Digital Plans Using PointCab Origins and Geograf

man sitting in ftonz of laptop. PointCab Origins is open.

Once the laser scanning was completed, the raw point cloud data was processed with PointCab Origins:

  • True-to-scale orthophotos were generated automatically.
  • The orthophotos and extracted measurements were imported into the CAD system Geograf within one hour.
  • Detailed 2D plans, including facade drawings and crack documentation, were created at a 1:50 scale.

This workflow enabled architects and engineers to immediately begin modeling and detailed planning for renovation and conversion. The CAD deliverables supported both the artistic design and the technical compliance needed for a listed building.

Why Detailed Facade Documentation Matters for Preservation Projects

For any structure under heritage protection, understanding the existing condition – especially at high resolution – is vital:

  • Preservation orders require that original characteristics be respected in renovation.
  • Irregularities (cracks, offsets, sloping segments) must be precisely recorded before any intervention.
  • A digital record supports historical documentation and prevents speculative or inaccurate reconstruction.

By using 3D laser scanning and rapid orthophoto generation, the project team not only met the strict accuracy requirements but also sped up the planning process, saving time and reducing risk during subsequent project phases.

blank

Want to keep up with the latest pointCab news?

Then follow us on Social Media or subcribe to our newsletter!

Envelope Facebook-f Twitter Instagram Linkedin-in Youtube

As-built documentation of an old house

USER STORY

As-built documentation of an old house in Switzerland

Text: As-built documentation of an old house in Switzerland Picture: two point cloud views of building

Contents

As-Built Documentation of an Old House: Why a Complete 3D Laser Scan Was Essential​
Missing Plans, Irregular Geometry, and the Need for Precision
Survey: Faro Photon 120, Faro Scene, and Efficient On-Site Work
Processing the Point Cloud: Fast Extraction of Plans and Sections
What This Case Study Demonstrates
​

As-Built Documentation of an Old House: Why a Complete 3D Laser Scan Was Essential

blank

An old residential building in a village in the Swiss canton of Ticino lacked reliable, up-to-date building plans. To prepare renovation and restoration work, the engineering firm Geomatica Righitto (Lugano, Switzerland) was commissioned to do a full 3D as-built documentation.

Traditional plans were missing or outdated, and the building required precise measurements to support planning in CAD and BIM software.

Missing Plans, Irregular Geometry, and the Need for Precision

Interior of kitchen in Ticino. Slight deviations are visible.

Older buildings rarely follow perfectly straight lines or standardized geometries. Over decades – or even centuries – walls may shift, floors may sag, and angles deviate from 90 degrees.

This means: assumptions based on symmetry or “standard” geometry can be highly misleading.

For renovation work, especially structural or restorative interventions, accurate data is crucial. Because no reliable plans existed for this house and its geometry was visibly irregular, a precise and complete measurement was essential, making 3D laser scanning the ideal method.

Survey: Faro Photon 120, Faro Scene, and Efficient On-Site Work

blank

Geomatica Righitto used a FARO Photon 120 laser scanner to capture the entire building, including:

  • three façades,
  • the basement,
  • the roof,
  • and all four floors.

In total:

  • 29 scans,
  • 6 hours on site,
  • 3 survey specialists.

All scans were registered and merged in FARO Scene, ensuring correct alignment and a unified, consistent point cloud.

This point cloud became the complete digital representation of the building, including all the irregularities typical of older structures.

Point clouds are for engineers, plans for architects. PointCab Origins is the fastest connection between them.
Marzio Righitto
Engineer - Pastorelli SA
Dez. 2018

Processing the Point Cloud: Fast Extraction of Plans and Sections

Layout and facade view in PointCab Origins

Once the unified point cloud was ready, Geomatica Righitto used PointCab Origins to extract essential architectural outputs:

  • 4 floor plans
  • 3 façade plans
  • 20 building sections
  • Orthophotos for façades and interior walls

These automated extractions significantly reduced manual drafting work.
 The final drawings — both as-built documentation and renovation plans — were delivered in a CAD/BIM-ready format for use in Archicad.

The entire processing workflow, including preparation for delivery, took about 8 hours.

What This Case Study Demonstrates

This project shows how even older buildings with irregular geometry and missing documentation can be comprehensively captured. Old buildings are rarely dimensionally perfect, but laser scanning captures reality exactly as it is, and the resulting point cloud becomes a trusted digital baseline.

The combination of FARO Photon 120, FARO Scene, and PointCab Origins enabled Geomatica Righitto to create reliable plans quickly –  giving architects and engineers the confidence they need to design renovations and restoration work effectively.
